WPS Connection

  1. Tap WPS (Push button method).

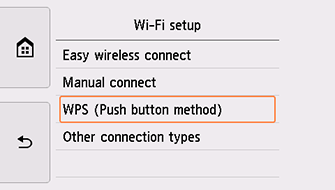

    Wi-Fi setup screen: Select WPS (Push button method)

  2. Tap OK.

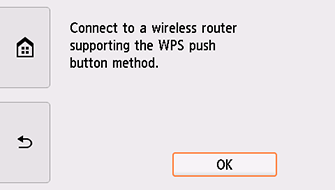

    WPS (Push button method) screen: Select OK

  3. Press and hold the WPS button on the wireless router.

    For more on pressing the WPS button, see the wireless router manual.

  4. Tap OK on the printer within 2 minutes.

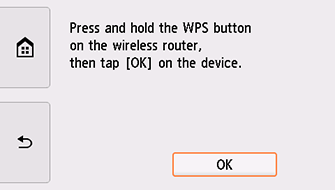

    WPS (Push button method) screen: Select OK

    If a different screen appears, see "Troubleshooting."

  5. When the screen on the below appears, tap OK.

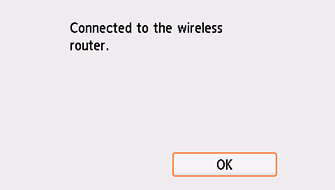

    Completion screen (Connected to the wireless router.)

    If a different screen appears, see "Troubleshooting."

  6. Tap HOME on the left side of the screen.

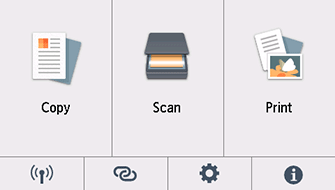

    HOME screen

    The network connection setup is now complete.

    When connection is complete, Network appears at the bottom left of the screen.

Windows

In the taskbar, click the application software you have been using for setup, and then follow the on-screen instructions to proceed with setup.

macOS

Return to the application software and proceed with the setup.

Click Setup icon in the Dock, follow the on-screen instructions to proceed with setup.

Dock
